Water level measurers

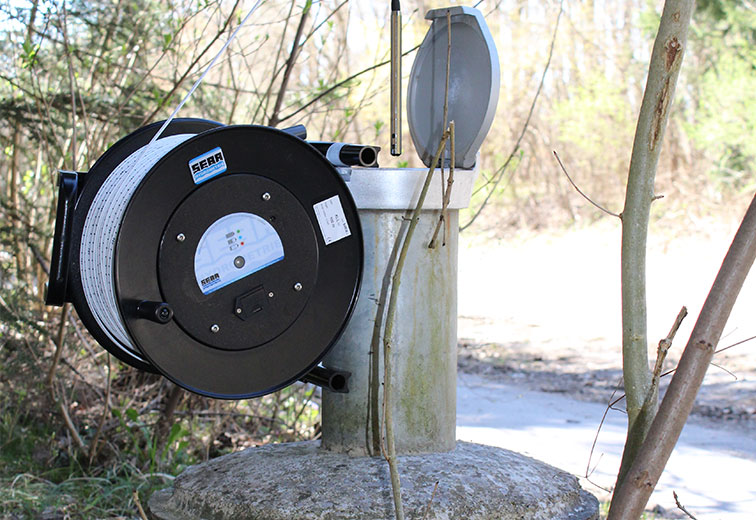

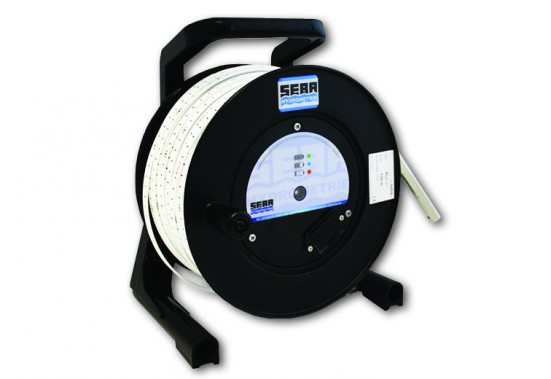

 KLL-Light with 50 m strip from SEBA Hydrometrie (Germany) is a simple measuring instrument for easy groundwater level measurements.

       When the probe comes into the water, then the electric circuit switches are sent by sending a signal back to the triggering light and sound signals.

      The water level is determined by reading the readings on the cable / measuring tape upper side of the housing. Especially remarkable is the lightweight support frame made of high-strength polycarbonate with a comfortable handle and LED battery status indicator.

      Like all SEBA Hydrometrie cable type water level meters, the KLL Light is equipped with a durable, low wear cable / measuring tape with easy-to-read difits. Made of stainless steel with brass elements.

Technical specification:

Sensor:
Units of water level measurement:  cm, dm, m

Principle of measurement: electrical contact
Material: stainless steel with nickel plated and brass end
Diameter: Ø 14 mm, length: 175 mm
Protection class: IP68

Execution:
Support frame: impact resistant, UV resistant polycarbonate
Cable cylinder: shock-resistant, temperature-resistant plastic, LED for battery status indication
Protection class: IP51

Cable:
Available lengths: 0-15 / 30/50/80/100/150/200 m
Material: 2-core flat cable, polyethylene with stainless steel strips and copper conductors
Scaling: black cm-area, dm-numbering, red meter marks
Accuracy: <1 cm (CLL 100 m)
Power supply: 9V Krona / 6F22 type alkaline battery
Operating temperature: -15 ° C to +50 ° C
Weight: Depending on cable length

Optional weights: 450 g and 800 g / Ø 45 mm
