Water level measurers

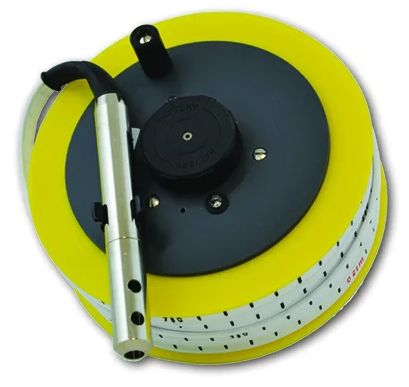

Water level meter KLL-Mini, 10 m cable, 14 mm diameter probe.

code: 1192
manufacturer: Seba Hydrometrie
possible to order
39000without VAT 322.31 €
    Price includes VAT 21%.
    The indicated price is valid ordering till 06.09.2025.
    The stock is informative
    Electric Contact Meter Type KLL-Mini 10m from Seba Hydrometrie, Germany.
    The device is also available with a 15 m cable/measuring tape: 415,- EUR with VAT
    • Mobile Pocket handset to determine the water level to a depth of 15m in monitoring wells from Ø 1"
    • Optical and acoustic signal upon contact with water
    • Extendable functionality (basic button, saltwater probe cap etc.)

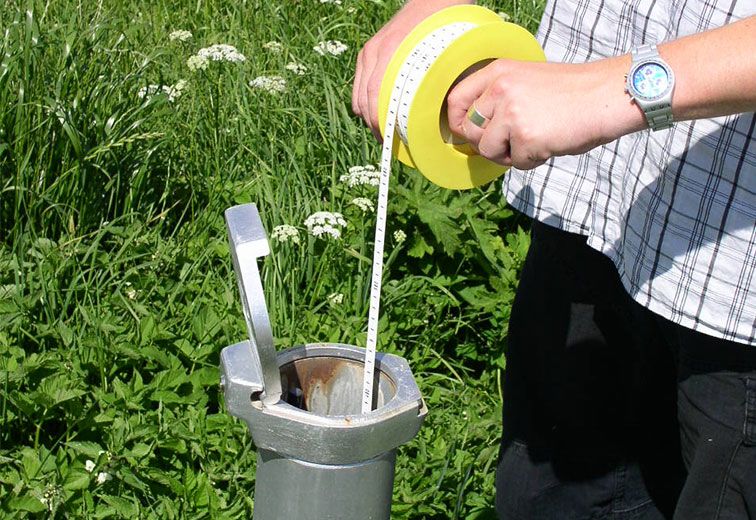

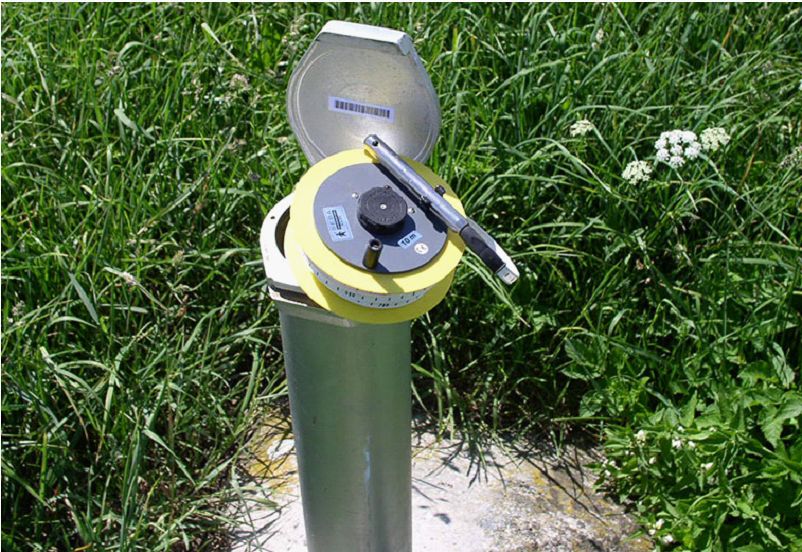

    • Monitoring of groundwater measuring sites, wells and shafts
    • Implementation of control / comparison measurements at measuring points with data collectors
    • Control measurements with pumping tests
    • Depth determination in monitoring wells, fountains, wells and surface waters in conjunction with a basic button

    Warrannty 1 year.

    Parameters:
    Water level [cm], [dm], [m]
    Sensor: Vertical
    Measurement principle: Electric contact

    Housing (vertical)
    Material: Stainless steel, nickel-plated brass tip
    Dimensions: Ø14mm, length: 175mm
    Protection class: IP68

    An electric water level gauge
    Cable drum: Flexible, temperature-resistant plastic
    Dimensions: Ø140mm
    Protection class: IP54
    Cables Lengths: 10m, 15m
    Material: 2-core flat cable, polyethylene with stainless steel braids and a copper core
    Scaling: Black cm-division, dm-numbering, red meter figures
    Accuracy: <1 cm
    Power supply: 2x 1.5V alkaline manganese batteries
    Operating temperature: -15°C - 50°C
    Weight: KLL-Mini 10m: 550g KLL-Mini 15m: 600g
