ACTUAL! Electrician's Thermal camera CM174 with Clamp Meter and Multimeter function!
The indicated price is valid ordering till 26.09.2025.
The stock is informative

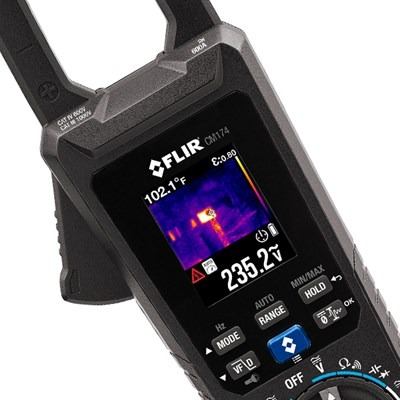

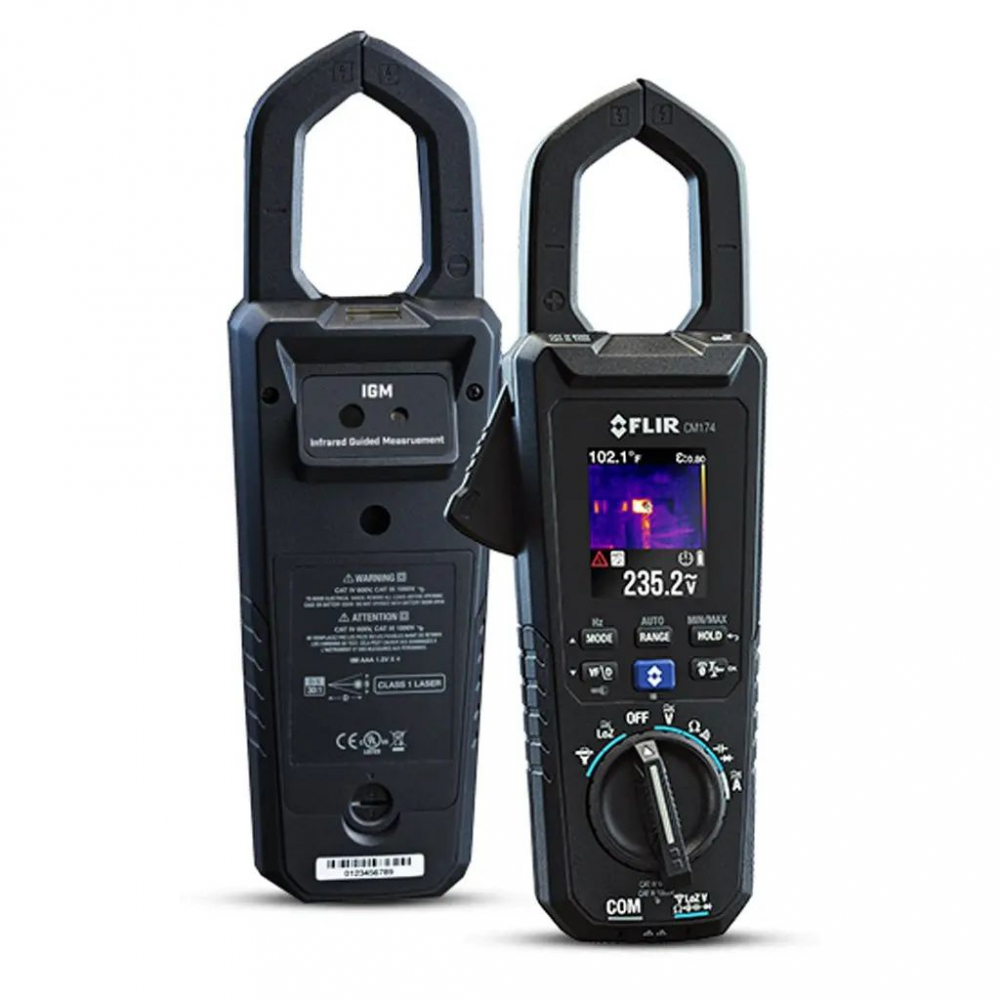

The FLIR CM174 has the power to lead you to problems you can't see with a standard clamp meter. Featuring Infrared Guided Measurement (IGM) technology powered by an integrated FLIR Lepton® thermal imaging sensor, the CM174 provides a reliable way to identify hot spots and overloaded circuits from a safe distance. IGM visually guides you to the precise location of a potential problem and helps confirm your findings with a wide range of functions plus temperature readings.
· Find Problems Faster

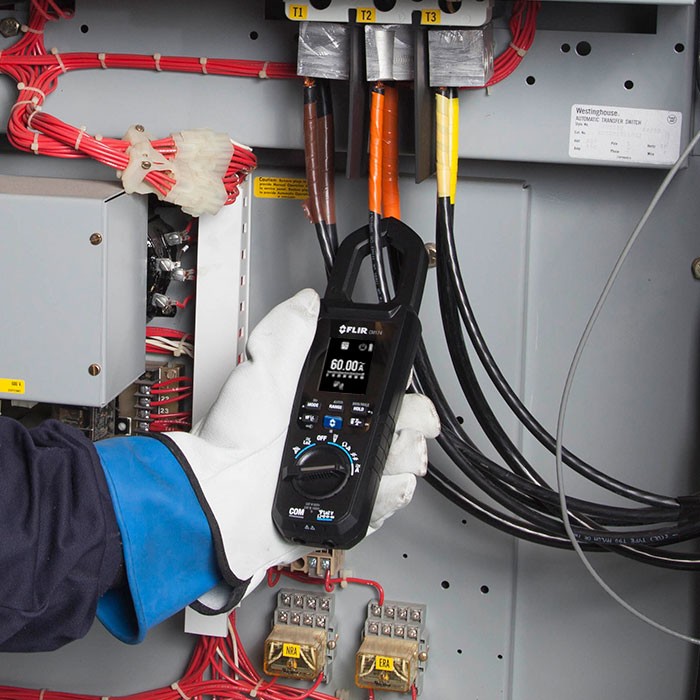

Quickly identify issues with IGM, without contact with panels, cabinets, or cluttered wires and cables that may present safety hazards.
· Confirm Your Findings
Verify problems, check load, and validate hot spots. Get accurate amperage and voltage measurements and center-point temperature readings.
· Solve Complex Electrical Issues
The CM174's intelligent design features a narrow jaw and built-in worklights to help you access difficult locations with lighting issues. Advanced electrical features allow you to get all the readings you need to solve problems fast, including True RMS, LoZ, VFD Mode, Inrush, and Smart Diode with Disable. Plus, the CM174 is expandable to 3000 Amps AC with FLIR FLEX accessories.
Specification:
Auto Power Off Yes
IR Resolution 80 × 60 (4,800 pixels)
Sensitivity 150 mK
Size (L x W x H) 43 x 89 x 241 mm
Warranty 10 Years on Product and Detector
Worklights Yes
Connections & Communications
Connectivity N/A
Environmental
Drop test 2 m
Emissivity Settings 4 Presets with Custom Adjustment
Imaging & Optical
Auto Range Yes, with manual range option
Color palettes Iron, Rainbow, Grayscale
Display Size 2.0 in TFT screen
Focus Fixed
Imaging Detector FLIR Lepton® microbolometer
Field of View [V x H] 38.6° x 50.0°
Measurement & Analysis
Capacitance Range 1000µF / Basic Accuracy ±1.0%
Diode Range 1.5V / Basic Accuracy ±1.5%
LoZ Mode AC Voltage Range 1000V / Basic Accuracy ±1.0%
LoZ Mode DC Voltage Range 1000V / Basic Accuracy ±1.0%
Resistance Range 6000Ω / Basic Accuracy ±1.0%
Temperature Accuracy ± 3°C (5.4°F) or ±3% of rdg
Temperature Range -13°F to 302°F (-25°C to 150°C)
VFD AC Current Range 600.0A / Basic Accuracy ±2.0%
VFD AC Voltage Range 1000V / Basic Accuracy ±1.0%
Performance
Measuring Rate 3 samples per second
Power
AC/DC Voltage Range 1000V / Basic Accuracy ±1.0%
Battery 4 AAA batteries; optional TA04 Li-Poly rechargeable battery
Inrush AC Current Range 600.0A / Basic Accuracy ±3.0%
