INTRODUCTORY PRICE! The compact infrared thermal camera Pocket2 from HIKMICRO

code: HM120004
manufacturer: Hikmicro
in stock, 3 cnt.
€67500without VAT 557.85 €
    Price includes VAT 21%.
    The indicated price is valid ordering till 06.09.2025.
    The stock is informative

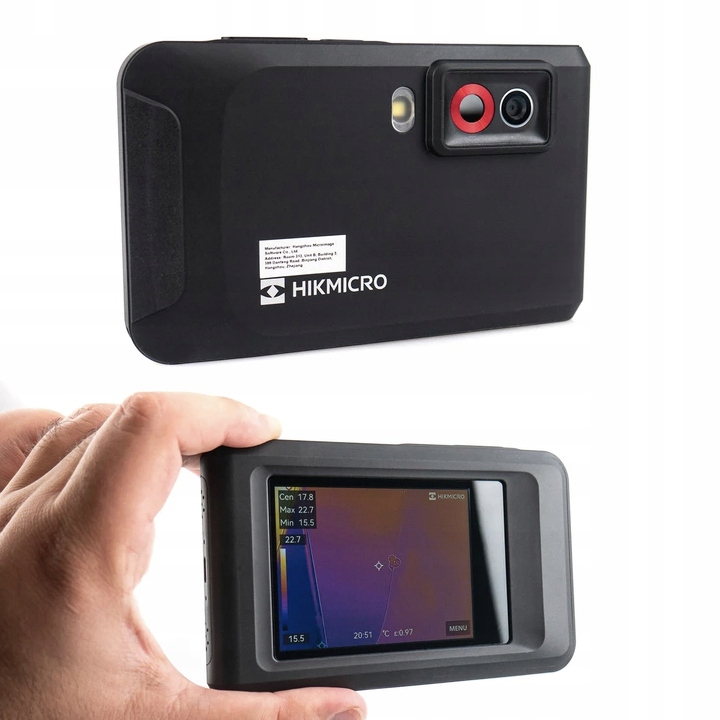

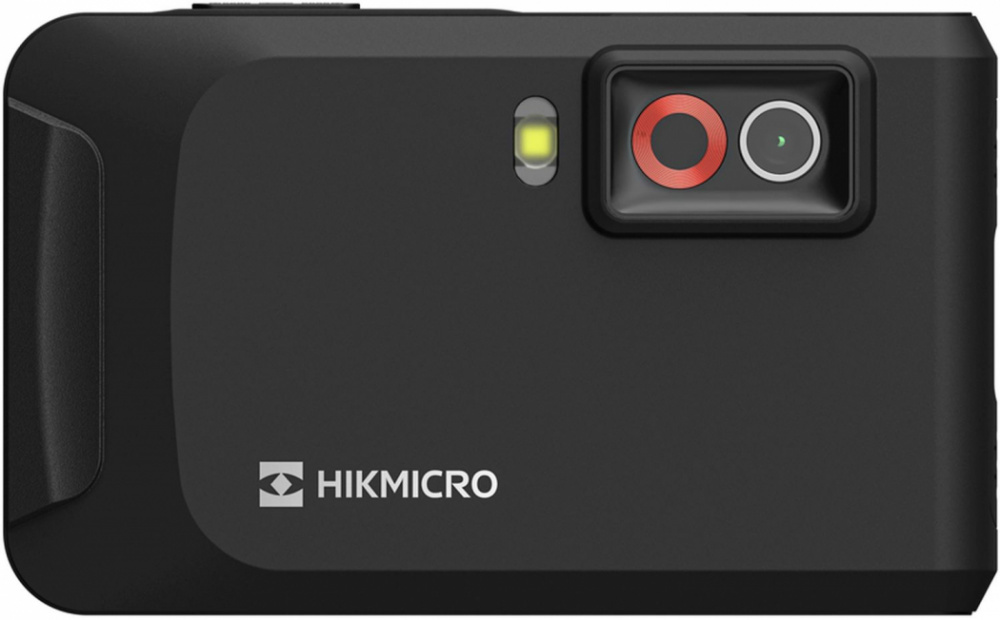

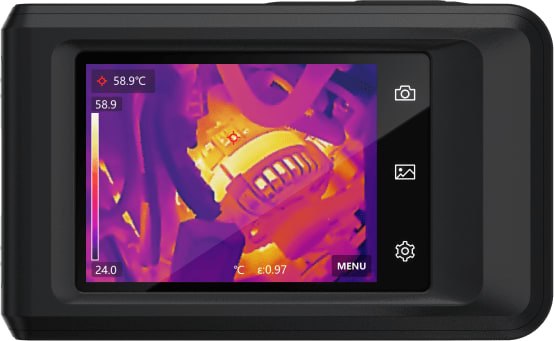

    Infrared Imaging Camera Pocket2 from HIKMICRO, PRC.

    Infrared Imaging Camera model:  Pocket2
    IR Resolution 256 × 192 (49,152 pixels)
    SuperIR Yes, on captured images and live view
    NETD < 40 mK (@ 25 °C, F#=1.0)
    Image Frequency 25 Hz
    Detector Pitch 12 μm
    Spectral Range 7.5 to 14 μm
    Focal Length 3.5 mm
    F-number F1.1
    Field of View (FOV) 50° × 37.2°
    Spatial Resolution (IFOV) 3.43 mrad
    Min. Focus Distance 0.3 m
    Focus Mode: Focus Free

    Image Display
    Visual Camera: 3264 × 2448 (8 MP)
    Display: 640 × 480 Resolution, 3.5" LCD Touch Screen with auto-rotation
    Screen Brightness: Manual
    Digital Zoom: 1.0x to 4.0x continuous
    Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

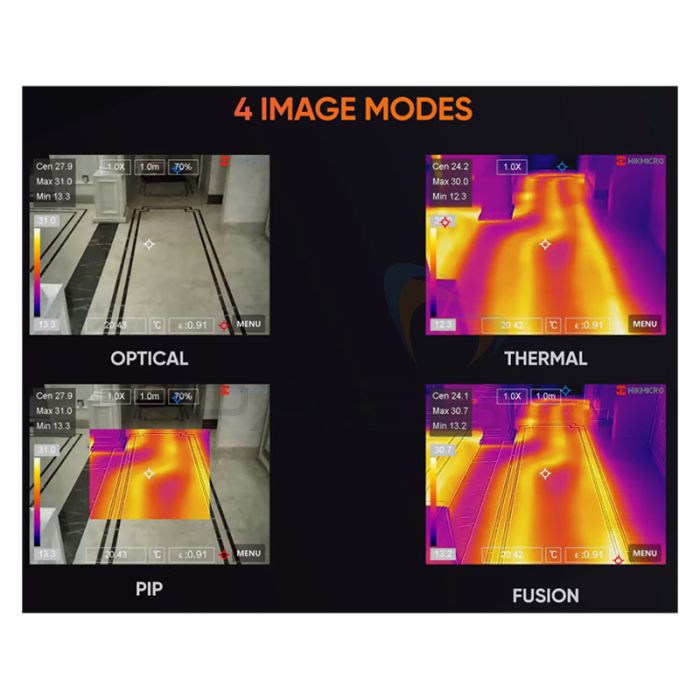

    Image Modes: Thermal/Visual/Fusion/PIP/Blending

    Measurement and Analysis
    Object Temperature Range: -20°C to 400°C
    Accuracy: Max (±2°C, ±2%), for the ambient temp. 15°C to 35°C and object temp. above 0°C
    Measurement Tools: Center Spot, Hot Spot, Cold Spot
    Level and Span Mode: Auto/Manual/1-Tap Touch-screen

    Data Storage and Communication
    Storage Media: Built-in 16 GB flash memory (user available storage space is less than the
    nominal capacity)
    Image Storage Capacity: Approx. 60,000 Images
    Image File Format: JPEG
    Annotations Text note: max. 255 characters
    Video Storage Capacity: Approx. 54 hours
    Video File Format: MP4 video (25 Hz) and Radiometric video (5 Hz), Radiometric Infrared-Video
    Streaming (Compressed)
    Over UVC

    General
    Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)
    Bluetooth Bluetooth 4.2, supports wireless headsets
    USB Interface: USB Type-C
    LED Light Yes
    Power Supply: USB-C (5V/2A)
    Power Saving Mode: Auto Power-off and manual sleep
    Battery Type: Rechargeable Li-ion battery
    Battery Operating Time: Approx. 4 hours
    Battery Charging Time: Approx. 2.5 hours fully charged
    Protection Level: IP54
    Drop Test Height: 2m
    Working Temperature Range -10°C to 50°C
    Storage Temperature Range -20°C to 60°C
    Relative Humidity < 95% non-condensing
    Weight Approx. 218 g
    Dimensions 138.5 × 85.2 × 23.6 mm
    Tripod Mounting UNC ¼”-20
