Moisture Meters

Multitester FMM 5

code: GF121800
manufacturer: geo-FENNEL
in stock, 2 cnt.
8300without VAT 68.60 €
    Price includes VAT 21%.
    The indicated price is valid ordering till 06.09.2025.
    The stock is informative

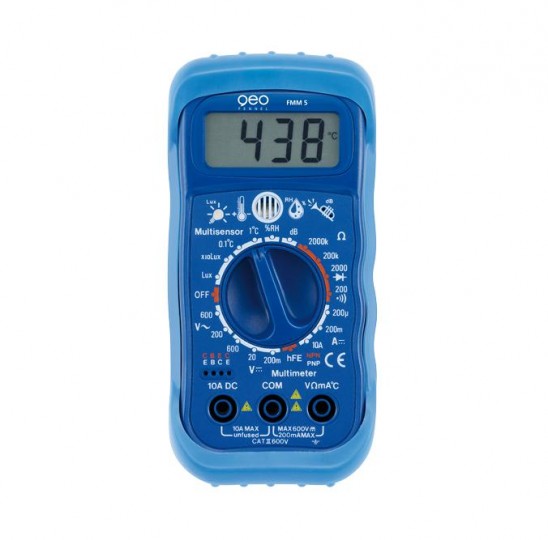

    FMM 5 from geo-FENNEL (Germany) is a universal multimeter for measuring the following quantities:

    1. El. dialing circuits with sound indication
    2. lighting
    3. temperature
    4. humidity
    5. sound level
    6. resistance
    7. current
    8. voltage
    9. transistor hFE

    The instrument can be supplemented with various types of surface, submersible and air / gas and K-type probes.
    The small size and ease of use make the FMM 5 multimeter an indispensable helper in our daily work.

    Multester tester set:
     1. Multitester FMM 5;
     2. Tester wires with probes;
     3. Submersible rigid K-type temperature probe 80 mm long and 3 mm in diameter;
     4. Soft storage / transport bag;
     5. Instruction LV, ENG, DE.

    Funktions
    Diapasons
    Selectivity
    Accuracy
    Sound level
    35 – 100 dB
    0,1 dB
    +/-3,5 dB at 94 dB, 1 kHz sinuss
    Lightning
    200 Lux
    0,1 Lux
    +/-5% rdg +/- 10 dgt at light t° 2850°K
    20’000 Lux
    10 Lux
    Moisture
    25% - 95% RH
    0,1% RH
    +/-5% RH at 25-35% RH
    Temperature
    -20°C - +200°C
    0,1°C
    +/-(3 rdg+3 dgts)
    -20°C - +1300°C
    1,0°C
    +/-(3 rdg+2 dgts)


    Digital Multimeter
    DCV
    200 mV, 20 V, 600 V
    0,1 mV, 10 mV, 1 V
    +/-(0,5% rdg+2 dgts)
    ACV
    200 V, 600 V
    100 mV, 1 V
    +/-(1,2% rdg+10 dgts)
    DCA
    200μA, 200 mA, 10 A
    0,1 μA, 0,1 mA, 10 mA
    +/-(3% rdg+2 dgts)
    Resistance
    200Ω, 2kΩ, 200kΩ, 2 M Ω
    0,1 Ω, 1 Ω, 1 kΩ
    +/-(1% rdg+2 dgts)
    hFE
    0-1000 hFE, PNP vai NPN.  VCE: 2,8 VDC, IB: 10 μA
    Diode
    Test current 1,4 mA; Breaking voltage 2,8 V;
    Shortcut
    Sound indication under 50 Ω, sudiosignal frequency 2,5 kHz
