Tramex 127mm long, 4 mm slim relative humidity sensor for measuring with CMEX2, MRH3 or CMEX5 humidity meters

code: TX120132
manufacturer: Tramex
2-3 days
24500without VAT 202.48 €
    Price includes VAT 21%.
    The indicated price is valid ordering till 06.09.2025.
    The stock is informative

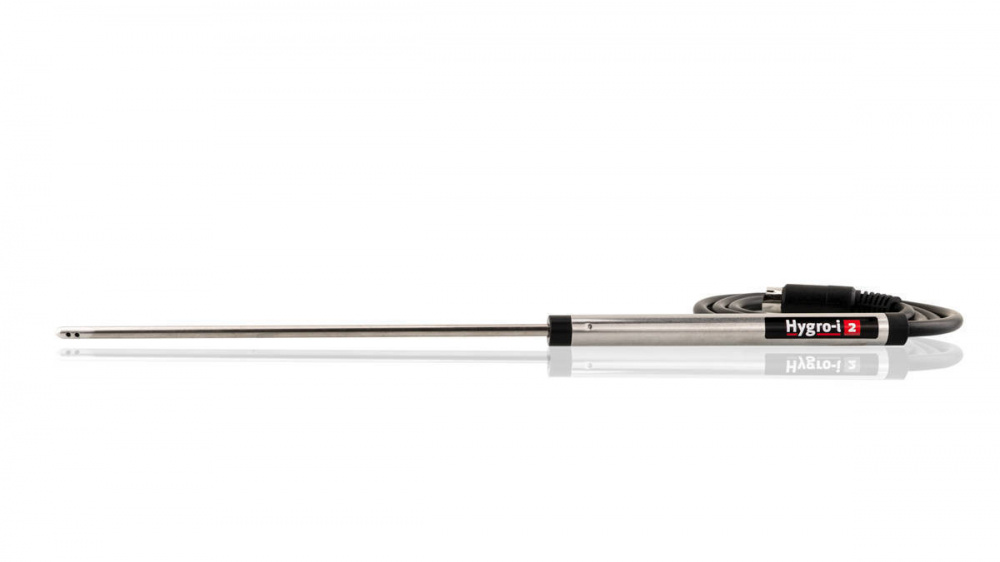

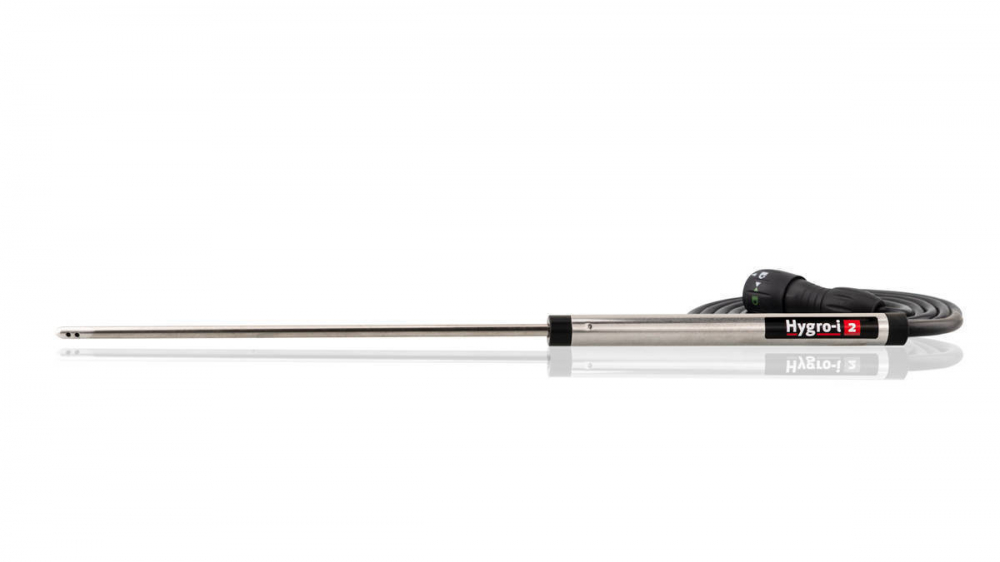

    127mm Short, Narrow Relative Humidity Sensor

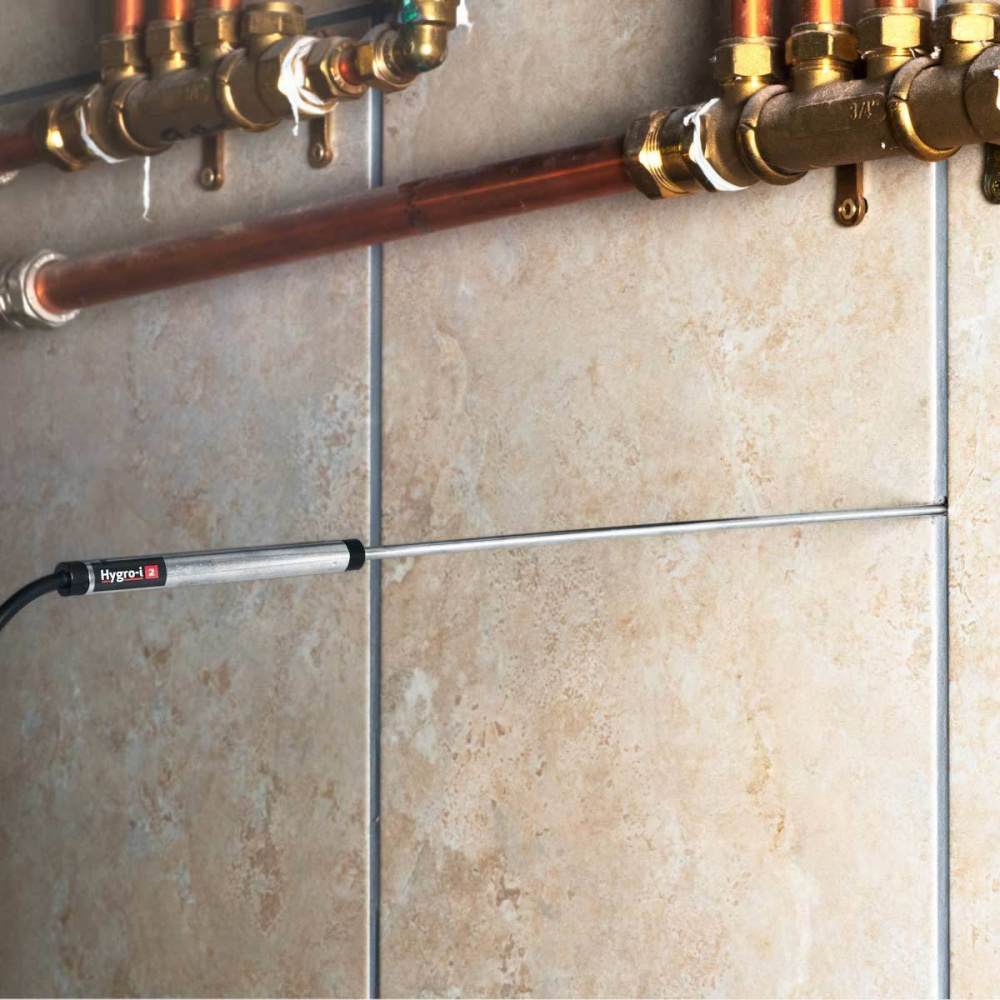

    IDEAL FOR MEASURING IN SMALL CREVICES AND IN BETWEEN TILES

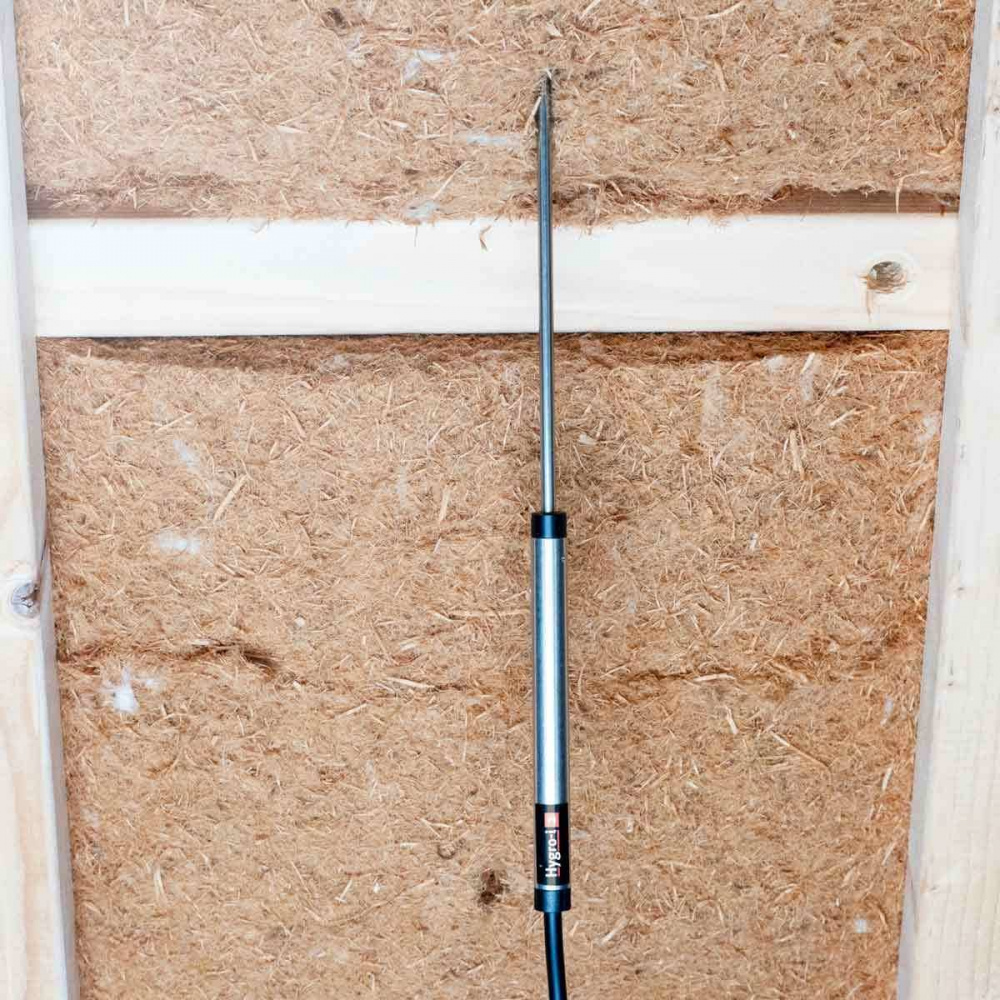

    The Tramex 127mm Short Narrow Wand Relative Humidity Probe has a 4mm diameter and is ideal for taking Relative Humidity Readings in small or narrow crevices, in between tiles, and for the evaluation of moisture conditions of wall and cavity structures within the building envelope. The probe measures Relative Humidity, Temperature, Dew Point temperature and grains per pound (grams per kilo) humidity ratio. This thin probe is ideal for use by Flood and Water Damage Restoration as well as Building Survey professionals. The Tramex Relative Humidity Probes are the most advanced, resilient and re-usable RH probes on the market today, allowing the user to evaluate moisture conditions within the building structure and can be used with Tramex digital meters and DataLoggers. The speed and accuracy of the Tramex Hygro-i2® probes set them apart from all other RH probes on the market.

    Features:

    • 127mm Probe for Deep Cavity Inspection.
    • Fast Acclimation and Temperature response time.
    • Proven robustness, Durable and Reusable.
    • Best in class accuracy and reliable, even at high RH >90%.
    • Measures giving in situ relative humidity and ambient RH, temperature, dew point temperature & grains per pound.
    • Relative Humidity range: 0% to 100%
    • Temperature Range: -40°C to 80°C
    • Best temperature accuracy of +/-0ºC to 90 ºC

    Product Order Code: RHP-SNW (with Din Connection for use with CMEX2 and MRH3)
    Product Order Code: RHP-SNW-B (with Bayonet Connection for use with CMEX5 and Feedback Datalogger RHTX)

    Relative Humidity Sensor Specifications:
    Range: 0 to 100%RH
    Accuracy: 0% to 99%RH ±2.0%RH (@ 25ºC)
    Resolution: 0.1% over the complete range
    Drift: <0.25%RH per year

    Temperature Sensor Specifications:
    Range: -40ºC to 125ºC
    Accuracy: ±0.1°C Range 20°C to 60°C
    Sensor Protection: PTFE Film protects sensor opening from water & dust
    Drift: < 0.03ºC per year
    NIST traceable. (National Institute of Standards and Technology)
